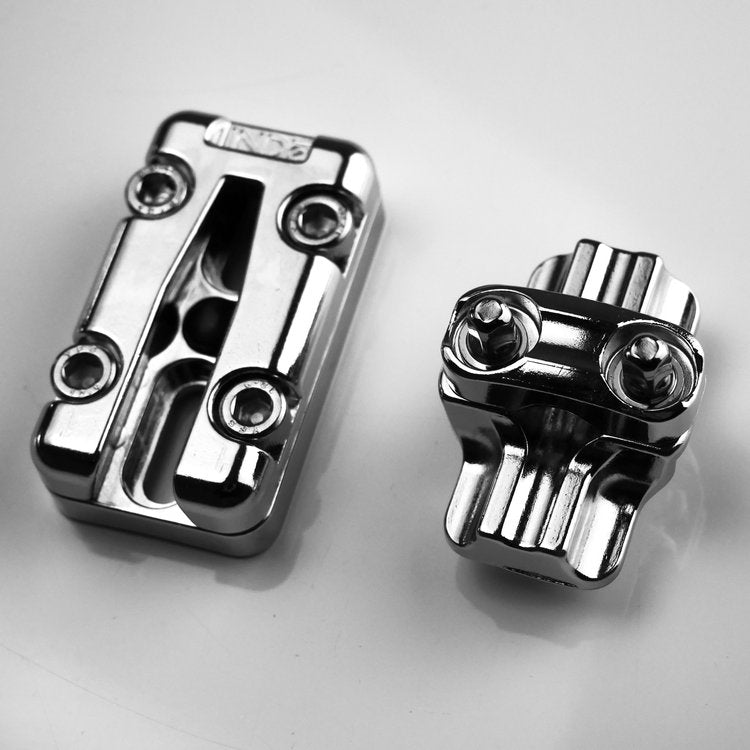

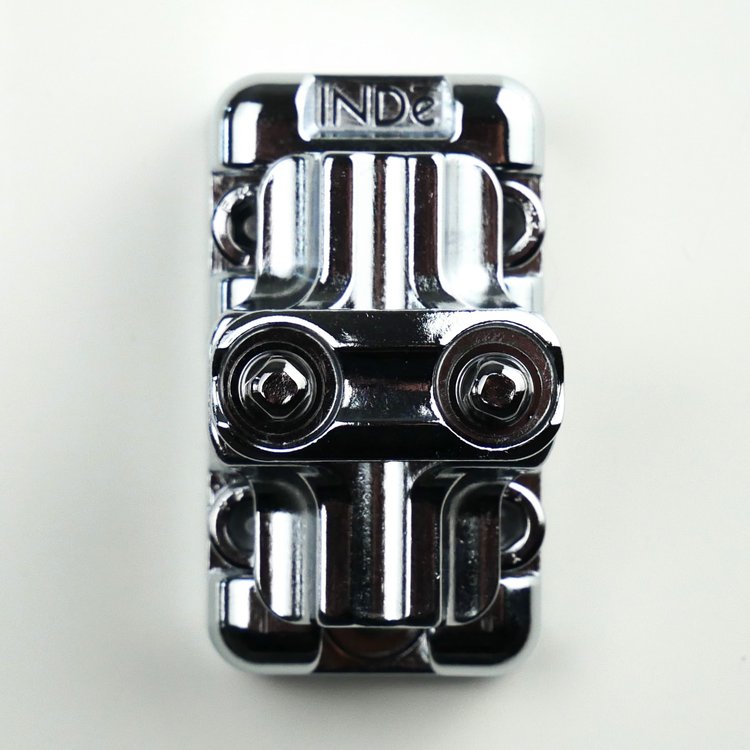

RST Brackets allow you to setup or teardown your kit in seconds, maintaining the exact positioning from the last time!

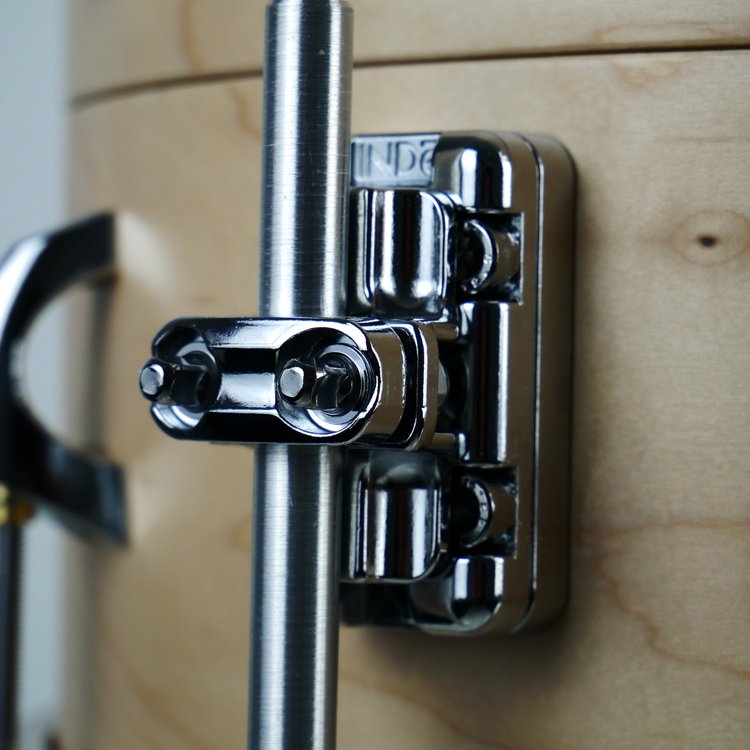

These brackets eliminate the use of wingnuts or keyscrews to tighten each connection point, and work as a memory lock to maintain positioning when disconnected. The tapered dovetail design ensures a solid connection, and retainer nub holds them in place until you want to tear down your kit. They can be used bolted directly to the shell (adjustable 1-2” hole spacing) for an ultra-low-profile connection point, or retrofitted in place of the clamp on any of our BR2/BR2XL/BR3 brackets or Slim-Bands for a lower profile/quicker setup suspension mount.

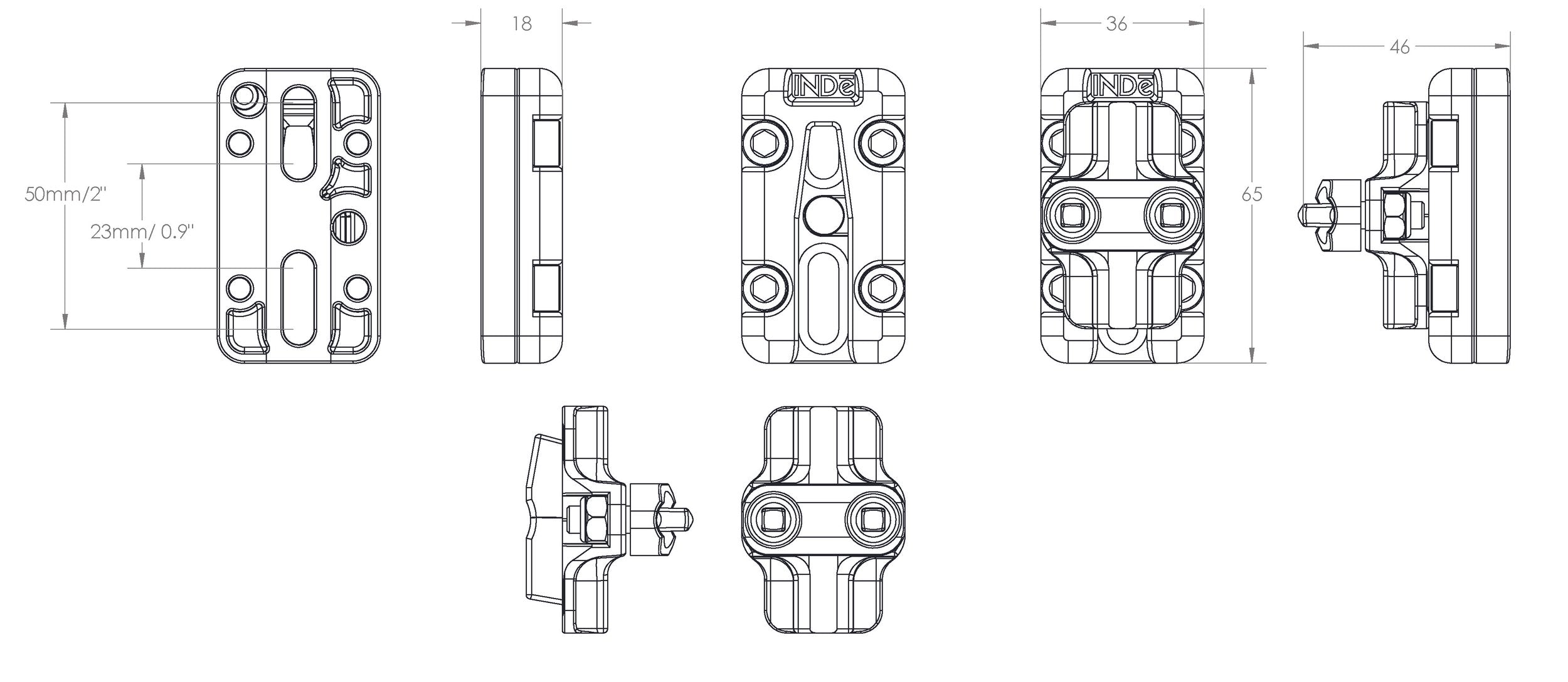

The RST Base only extends 18mm (11/16”) from the surface of the drum or bracket, so it makes packing into cases a breeze.

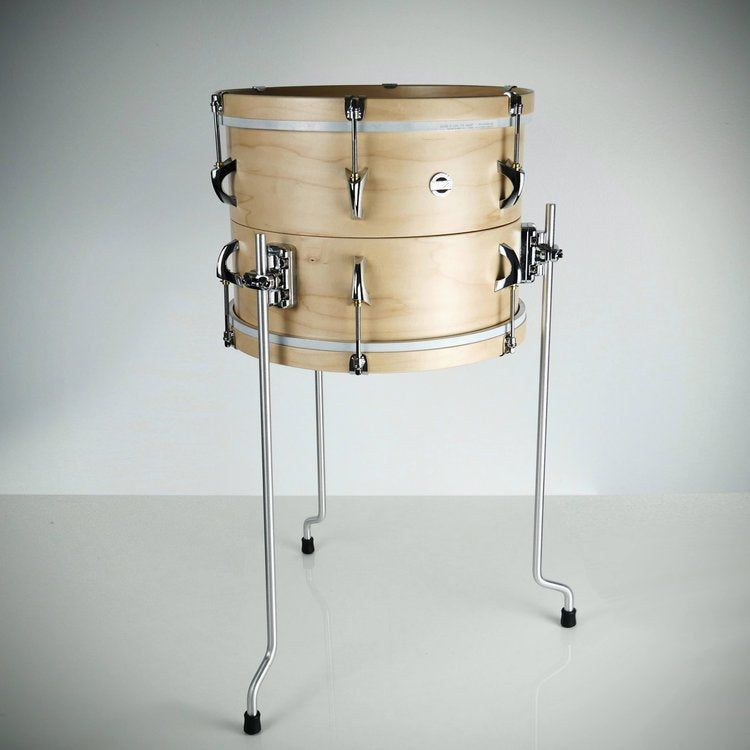

These work great as brackets for tom mounting, floor tom legs, bass spurs or more. Please note that they are designed to function with a vertical load or force from a single direction is applied, so applications like cymbal arms or other accessory mounts are not recommended.
Brackets are designed to fit 9.5mm and 10.5mm diameter rods/legs/L-arms. They can be adapted to fit 12.7mm by replacing the keyscrews with longer parts.
